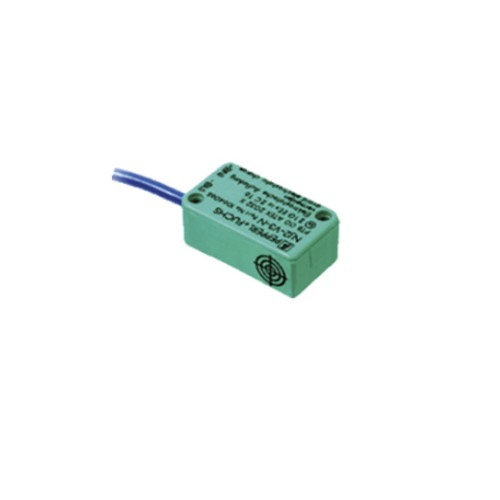

Description
Technical Data
General specifications
Switching function Normally closed (NC)
Output type NAMUR
Rated operating distance sn 2 mm
Installation flush
Assured operating distance sa 0 ... 1.62 mm
Reduction factor rAl 0.25
Reduction factor rCu 0.2
Reduction factor r304 0.7
Output type 2-wire
Nominal ratings
Nominal voltage Uo 8.2 V (Ri approx. 1 kΩ)
Switching frequency f 0 ... 1000 Hz
Hysteresis H 0.01 ... 0.1 mm
Suitable for 2:1 technology yes , Reverse polarity protection diode not required
Current consumption
Measuring plate not detected ≥ 3 mA
Measuring plate detected ≤ 1 mA
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
MTTFd 11775 a
Mission Time (TM) 20 a
General specifications
Switching function Normally closed (NC)
Output type NAMUR
Rated operating distance sn 2 mm
Installation flush
Assured operating distance sa 0 ... 1.62 mm
Reduction factor rAl 0.25
Reduction factor rCu 0.2
Reduction factor r304 0.7
Output type 2-wire
Nominal ratings
Nominal voltage Uo 8.2 V (Ri approx. 1 kΩ)
Switching frequency f 0 ... 1000 Hz
Hysteresis H 0.01 ... 0.1 mm
Suitable for 2:1 technology yes , Reverse polarity protection diode not required
Current consumption
Measuring plate not detected ≥ 3 mA
Measuring plate detected ≤ 1 mA
Functional safety related parameters
Safety Integrity Level (SIL) SIL 2
MTTFd 11775 a
Mission Time (TM) 20 a
