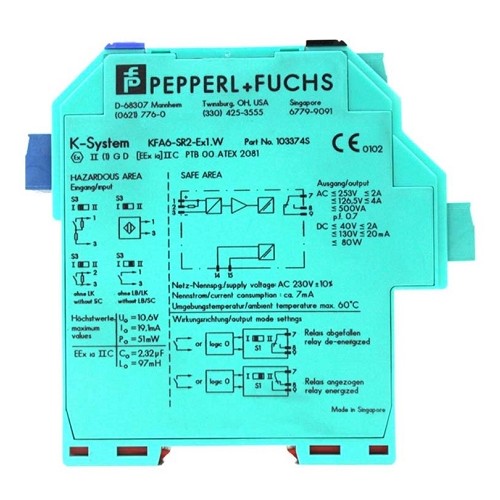

KFA6-SR2-Ex1.W | Pepperl+Fuchs | Switch Amplifier

Description

General specifications
Signal type		Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		terminals 14, 15
Rated voltage		207 ... 253 V AC, 45 ... 65 Hz
Power dissipation		1 W
Power consumption		max. 1 W
Input
Connection side		field side
Connection		terminals 1+, 2+, 3-
Rated values		acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current		approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis		1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection		breakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratio		min. 20 ms / min. 20 ms
Output
Connection side		control side
Connection		terminals 7, 8, 9
Output		signal ; relay
Contact loading		253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
Energized/De-energized delay		approx. 20 ms / approx. 20 ms
Mechanical life		10⁷ switching cycles
Transfer characteristics
Switching frequency		< 10 Hz
Galvanic isolation
Input/Output		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Input/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Indicators/settings
Display elements		LEDs
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010
Conformity
Electromagnetic compatibility		NE 21:2006
Degree of protection		IEC 60529:2001
Input		EN 60947-5-6:2000
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		PTB 00 ATEX 2081
	Marking	II (1)G [Ex ia Ga] IIC II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
	Input	Ex ia
	Voltage	10.6 V
	Current	19.1 mA
	Power	51 mW (linear characteristic)
Supply
	Maximum safe voltage	253 V AC (Attention! U_m is no rated voltage.)
Output
	Contact loading	253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
	Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012
International approvals
FM approval
	Control drawing	116-0035
UL approval
	Control drawing	116-0145
CSA approval
	Control drawing	116-0047
IECEx approval
	IECEx certificate	IECEx PTB 11.0031
	IECEx marking	[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I
General information
Supplementary information		Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Classifications

System	Classcode
ECLASS 11.0	27210121
ECLASS 10.0.1	27210121
ECLASS 9.0	27210121
ECLASS 8.0	27210121
ECLASS 5.1	27210121
ETIM 8.0	EC001485
ETIM 7.0	EC001485
ETIM 6.0	EC001485
ETIM 5.0	EC001485
UNSPSC 12.1	32101514
