Description
-
Estimated Lead Time : 1-10 working days.
-
Manufacturer : Pepperl+Fuchs
-

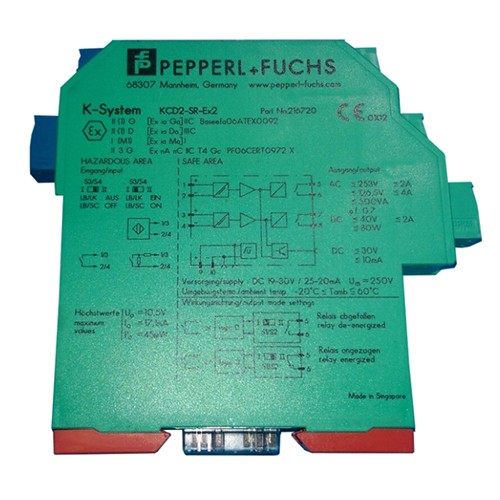

Product No. : KCD2-SR-EX2
-
Product type : Switch Amplifier
-
Signal type : Digital Input
-
Safety Integrity Level (SIL) : SIL 2
-
Connection : Power Rail or terminals 9+, 10-
-
Rated voltage : 19 ... 30 V DC
-
Ripple : = 10 %
-
Rated current : = 30 mA
-
Power dissipation : = 600 mW
-
Power consumption : = 600 mW
-
Connection side : field side
-
Connection : terminals 1+, 2-; 3+, 4-
-
Rated values : acc. to EN 60947-5-6 (NAMUR)
-
Open circuit voltage/short-circuit current : approx. 10 V DC / approx. 8 mA
-
Switching point/switching hysteresis : 1.2 ... 2.1 mA / approx. 0.2 mA
-
Line fault detection : breakage I = 0.1 mA , short-circuit I = 6.5 mA
-
Pulse/Pause ratio : min. 20 ms / min. 20 ms
-
Connection side : control side
-
Connection : terminals 5, 6; 7, 8
-
Output I : signal ; relay
-
Output II : signal ; relay
-
Contact loading : 253 V AC/2 A/cos f > 0.7; 126.5 V AC/4 A/cos f > 0.7; 30 V DC/2
-
A resistive load
-
Minimum switch current : 2 mA / 24 V DC
-
Energized/De-energized delay : = 20 ms / = 20 ms
-
Mechanical life : 107 switching cycles
-
Switching frequency : = 10 Hz
-
Input/input : Basic insulation according to EN 50178, rated insulation voltage 300 Veff
-
Display elements : LEDs
-
Control elements : DIP-switch
-
Configuration : via DIP switches
-
Labeling : space for labeling at the front
-
Directive 2014/30/EU : EN 61326-1:2013 (industrial locations)
-
Directive 2014/35/EU : EN 61010-1:2010
-
Electromagnetic compatibility : NE 21
-
Degree of protection : IEC 60529:2001
-
Ambient temperature : -20 ... 60 °C (-4 ... 140 °F)
-
Degree of protection : IP20
-
Connection : screw terminals
-
Mounting : on 35 mm DIN mounting rail acc. to EN 60715:2001
-
EU-Type : Examination Certificate BASEEFA 06 ATEX 0092
-
Marking : Ex-Hexagon II (1)G [Ex ia Ga] IIC , Ex-Hexagon II (1)D [Ex ia Da] IIIC ,
-
Ex-Hexagon I (M1) [Ex ia Ma] I
-
Certificate : PF 06 CERT 0972 X
-
Marking : Ex-Hexagon II 3G Ex nA nC IIC T4 Gcontact loading : 50 V AC/2 A/cos f > 0.7; 30 V DC/2 A resistive load
-
Directive 2014/34/EU : EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
-
Control drawing : 116-0419 (cFMus)
-
Control drawing : 116-0420 (cULus)
-
IECEx approval : IECEx BAS 06.0025
-
Approved for : [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
-
Dimensions : 1.25 x 11.4 x 11.9 cm (0.5 x 4.5 x 4.7 inch) , housing type A2
-
Weight : 0.1 Kg
-
Shipping weight : 1.5 Kg
