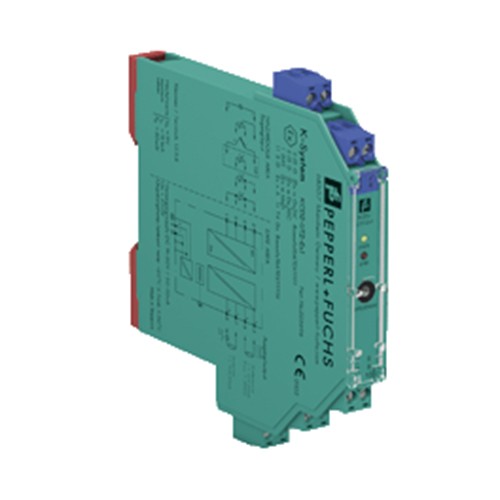

Description
| General specifications | ||
|---|---|---|
| Signal type | Analog input/analog output | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 2 | |
| Supply | ||
| Rated voltage | 10 ... 35 V DC , loop powered | |
| Power dissipation | 0.4 W | |
| Control circuit | ||
| Connection | terminals 12-, 11+; 8-, 10-, 9+ | |
| Voltage | 10 ... 35 V DC | |
| Current | 4 ... 20 mA | |
| Power dissipation |
< 150 mW per channel at 25 mA and U < 26.1 V < 400 mW per channel at 25 mA und U > 26.1 V |
|
| Field circuit | ||
| Connection | terminals 1+, 2-; 4+, 5- | |
| Voltage |
≥ 0.9 x Uin - (0.23 x current in mA) - 0.7 for 10 V < Uin < 26.1 V ≥ 23 V - (0.23 x current in mA) for Uin > 26.1 V |
|
| Short-circuit current | max. 100 mA | |
| Transfer current | max. 25 mA | |
| Transfer characteristics | ||
| Accuracy | 0.1 % | |
| Deviation | ||
| After calibration | Uin ≥ 5 V ± 20 µA/Uin ≤ 5 V ± 50 µA incl. calibration, linearity, hysteresis and output load fluctuations at the field side; at 20 °C (68 °F) | |
| Influence of ambient temperature | ≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V | |
| Rise time | ≤ 5 ms at 4 ... 20 mA and Uin = input voltage < 26 V | |
| Galvanic isolation | ||
| Input/Output | basic insulation according to IEC 62103, rated insulation voltage 300 Veff | |
| Indicators/settings | ||
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) | |
| Conformity | ||
| Electromagnetic compatibility |
NE 21:2012 EN 61326-3-2:2008 |
|
| Degree of protection | IEC 60529:2001 | |
| Protection against electrical shock | EN 61010-1:2010 | |
| Ambient conditions | ||
| Ambient temperature |
-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
|
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | approx. 100 g | |
| Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 | |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
| General information | ||
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. | |
