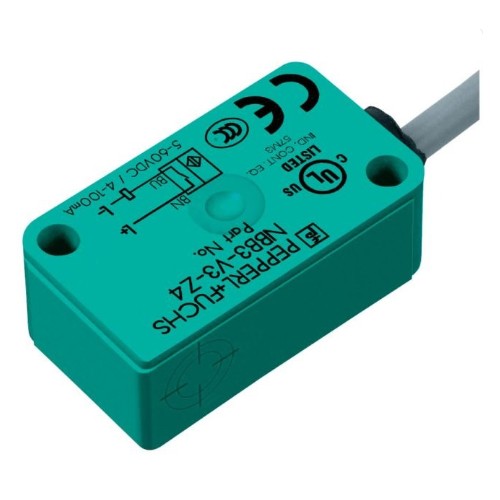

Inductive sensor NBB3-V3-Z4 PEPPERL FUCHS

Description

Technical Data
General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance sn 3 mm
Installation flush
Output polarity DC
Assured operating distance sa 0 ... 2.4 mm
Actual operating distance sr 2.7 ... 3.3 mm typ.
Reduction factor rAl 0.45
Reduction factor rCu 0.35
Reduction factor r304 0.8
Reduction factor rBrass 0.5
Output type 2-wire
Nominal ratings
Operating voltage UB 5 ... 60 V DC
Switching frequency f 0 ... 2000 Hz
Hysteresis H typ. 0.2 mm
